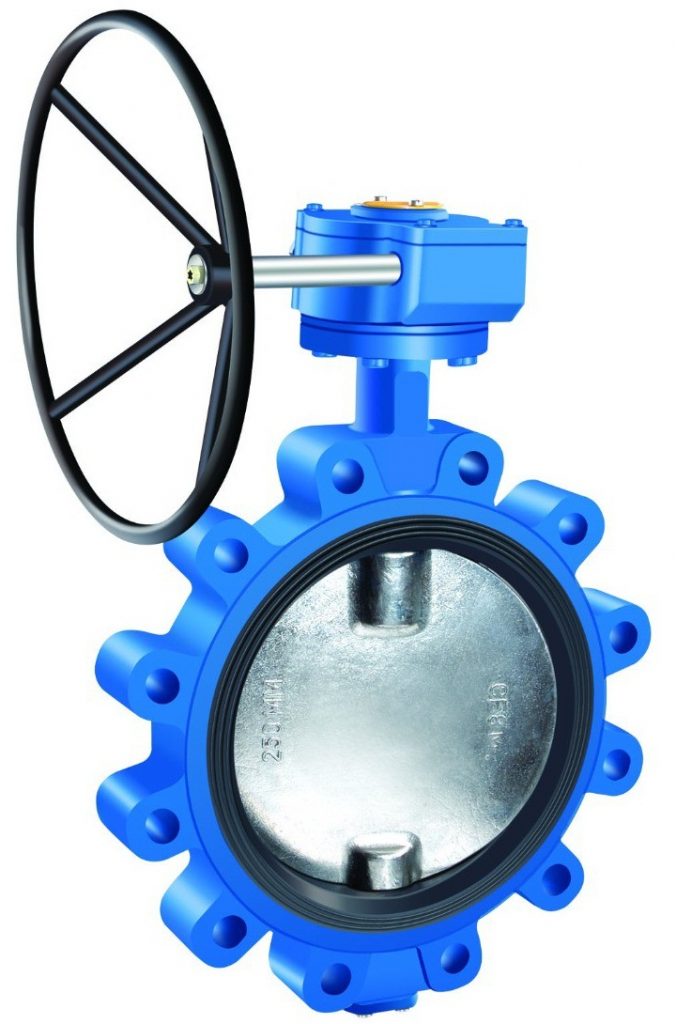

1) Stem Connection available to match Standard Top Plate Drilling.
2) Top Plate Double Drilled to fit ISO 5211 Dimensions and Standard Secondary bolt circle dimensions. All Handles Gear Operators and Pneumatic Actuators are
designed to mount directly on Valves
3) Nylon PA 12 Coated Disc option ensures excellent Corrosion Resistance to Several Chemical Media. The Hard Non-Porous Sintered polymer has very low
Hygroscopicity and is suitable for use in Drinking Water and Non-Alcoholic Foodstuffs.
4) One Piece Stem with Close tolerance Double D Drive Eliminates the need for Disc Screws or Taper Pins.
5) Double O-Rings are Molded in both Upper and Lower Journals Providing a Superior Secondary Seal.
6) Unique “Centre-Lok®” Seat Design Virtually Eliminates any Seat Movement Dering the Seating and Un-Seating of the Disc.
7) Heavy duty Square-Grooved Eeat Design hasmolded O-Ring seals to serve and Flange Gaskets. EPDM Seats are Peroxide Cured to Yield the best Elastic Properties
of the Elastomer.
8) Unique Stem Retention System to Provide blow out proof Stem and easy Aassembly and Disassembly of valve.
9) Heavy duty Acetal bushing absorbs the Forces Acting on the Stem/Disc Assembly due to Line Pressure.
10) BI – Directional ‘U’ Cup Stem Seal.
11) Heavy duty One-Piece Body has Extended Neck for 2″ Piping Insulation. Standard Coating is two coat of hard, Zinc-rich Epoxy for Excellent Corrosion Resistance.
12) Two Flange Locating Holes for Sizes Up to 12″ and Four Flange Locating Holes from Size 14″ to 24″ ensure easy alignment of Valve during Installation. They meet
ANSI #125 / 150 or outher International Drilling Standards.
13) High Strength Disc with Hand Polished Disc Edge and Hubs.
14) Precision Machined Radius on the Upper and Lower Disc Hubs is Pressed against Upper and Lower Seat Sealing Faces for achieving Primary Sealing between Disc
and Seat.
