GEAR BOX & MANUAL OVERRIDE

  • HOME
  • /
  • GEAR BOX & MANUAL OVERRIDE

ONLINE APPOINTMENT

Book your appointment now and get existing deals.

MAKE APPOINTMENT
DOWNLOAD
Download BrochureDownload Summary

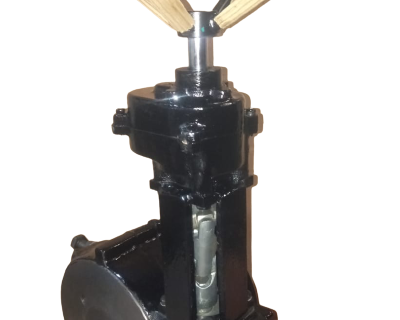

  • Quartern_Turn_Manual_Override_with_Reduction_Unit-pune-bhosari-moshi
  • Quartern Turn Manual Override-pune-bhosari-moshi

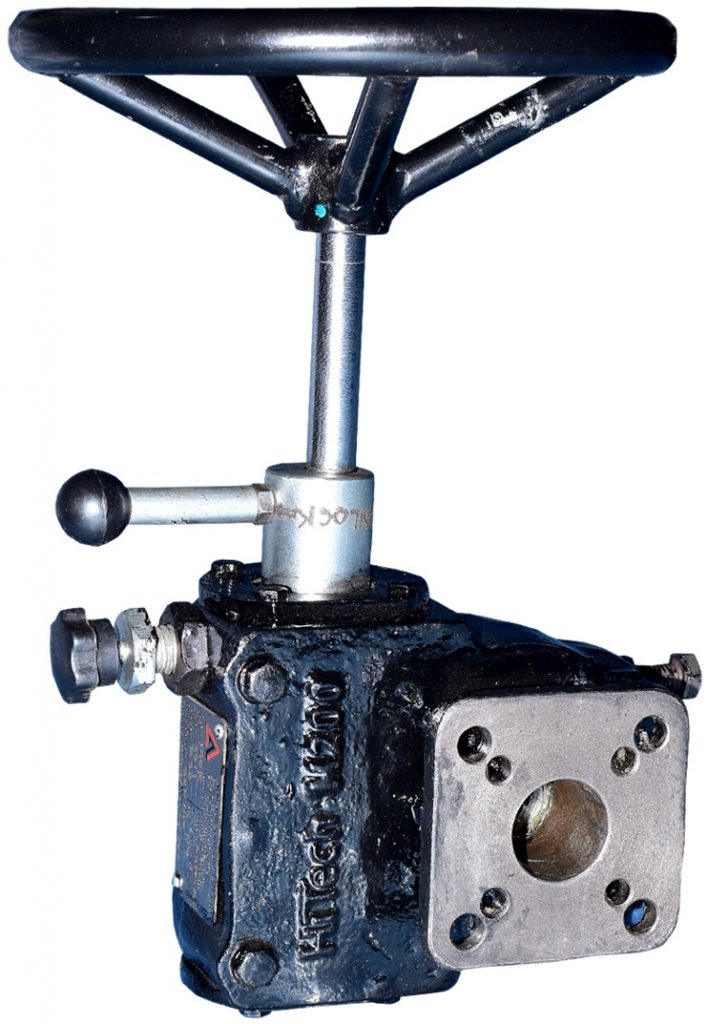

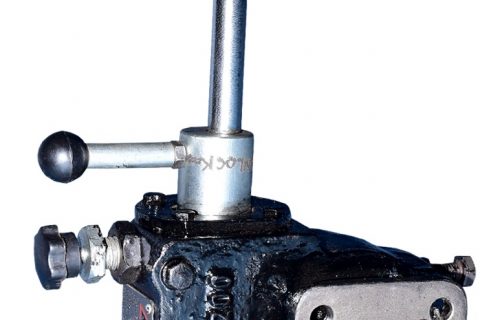

  • Quartern Turn Manual Override Top View-pune-bhosari-moshi

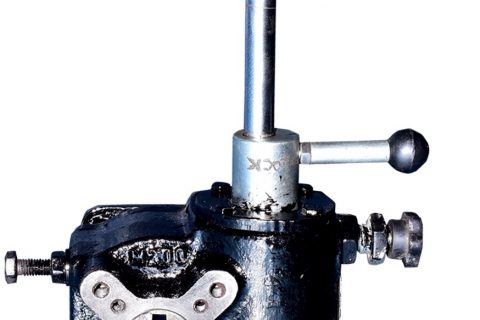

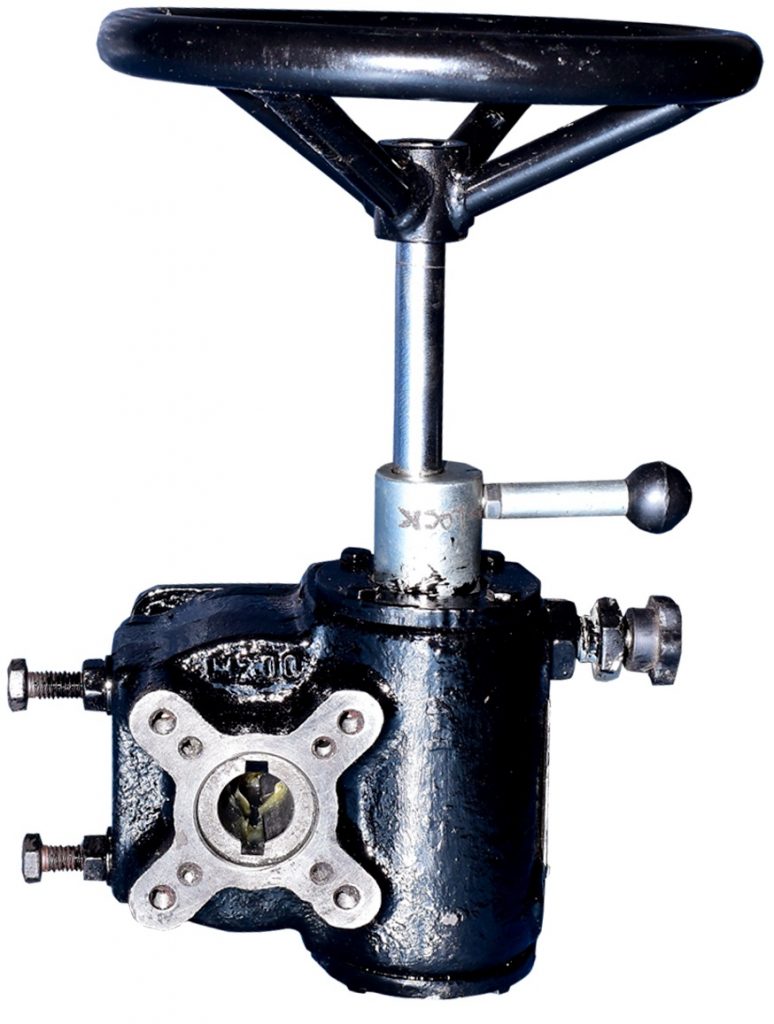

  • Quartern Turn Manual Override Bottom View-pune-bhosari-moshi

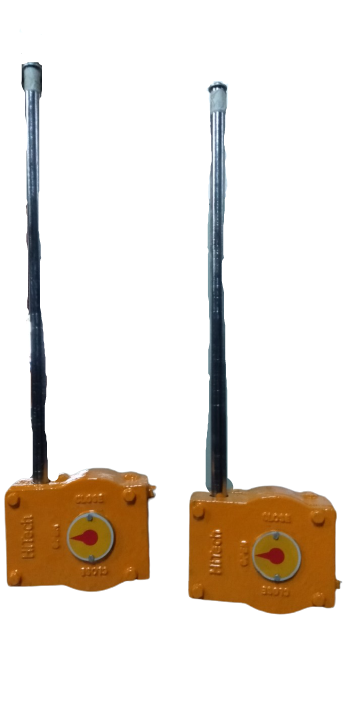

  • Stem_Extended_Gear_Box-pune-bhosari-moshi

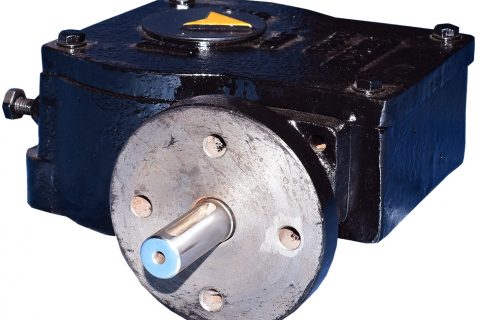

  • Quartern Turn Gear Box Suitable for Electrical Actuator-pune-bhosari-moshi
  • Quartern Turn Gear Box Suitable for Electrical Actuator-pune-bhosari-moshi-1

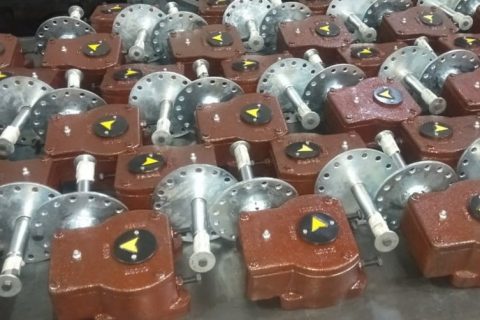

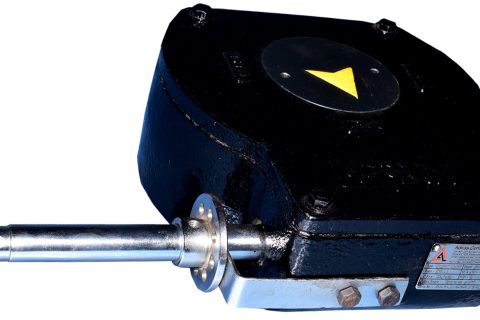

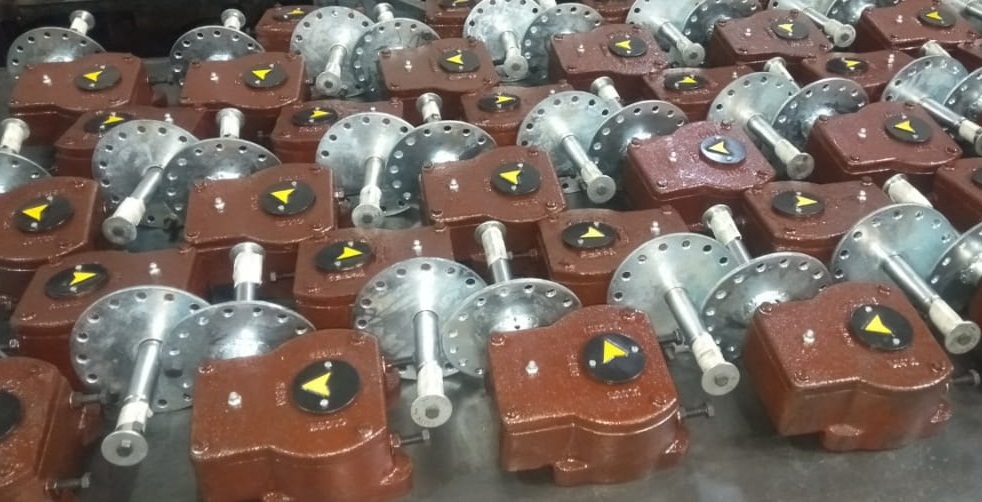

  • Quartern Turn Gear Box with Padlock Arrangment-pune-bhosari-moshi
  • Quartern Turn Gear Box with Padlock Arrangment-pune-bhosari-moshi

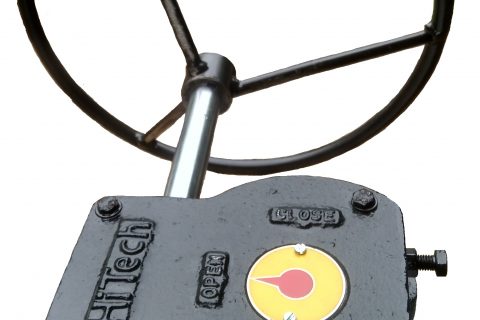

  • Quartern Turn Gear Box-pune-bhosari-moshi

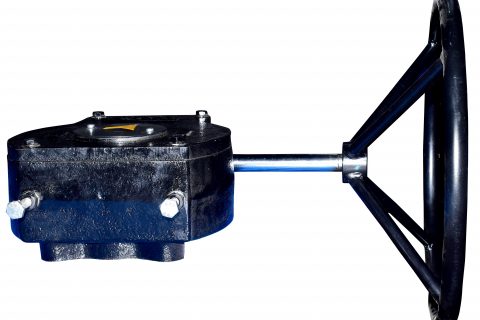

  • Quartern Turn Gear Box Sideview-pune-bhosari-moshi
  • Chain_Pulley_Wheel_Operated_Gear_Box-pune-bhosari-moshi
  • Chain Pulley Wheel + Handwheel Operated Gear Box-pune-bhosari-moshi

A_PRODUCT FEATURES ( Gear Box & Manual Override) :

1. Meeting QUALITY , PERFORMANCE and DELIVERY.
2. High Performmance Gear Boxes by Robust Construction & Compact Design.
3. ISO 5211 direct Mounting Flanges.
4. Self – Locking Mechanism ( Worm & Wormwheel)
5. Gear Box with Extension Shaft Arrangment also available as Optional.
6. Grease Nipple, Pad Lock Arrangment & Chain Wheel Arrangment also available as Optional.7. Optional accessories included the Position Indicator & Switch Box Mounting Parts.
8. Types of Stem Cavity [Drive Bore] Processed : Round with Key Way, Square 90°/45° Orientation, Double-DEE.

9. Sturdy Hand wheel with Black Powder Coating for Easy & Smooth Operation.

10. Standerd Version : Clockwise Input = Clockwise Output to CLOSE.
11. Filled with special Multi-Purpose Grease during Assembly.
12. Output Travel – 0° to 90° ( ± 5 °)
13. 360° Operational Gear Box also Available.
14. Working Temprature : -20° C to + 120°C
15. Weatherproof IP 67 / 68 Enclosure.

ADIRAS ENTIRE RANGE OF GEAR BOX MANUFACTURING

Sr. No. Product Name Adiras Series Rating Size Range
1. Quarter Turn Manual Operated Gear Box ARTG - 200 Nm to 100000 Nm
2. Electrical Actuator Operated Gear Box ARTGE - 200 Nm to 100000 Nm
3. Pnumatic Actuator Operated Manual Override ARTM - 200 Nm to 100000 Nm
4. Multi Turn Manual Operated Bevel Gear Box ARTBG - 150 Nm to 8000 Nm

WHY CHOOSE US

We offer a full range of services to B2B market in valves and gearbox manufacturing. We can help you with everything from your custom requirements to new requirements. We can handle any problem on both foreign and domestic clients.

  • We make valves & gearbox manufacturing more convenient for you
  • We are a friendly and professional group of people
  • We handle a wide range of valves and gearbox orders
  • We offer Quality Assurance before and after production
  • We get the job done right — the first time

POPULAR QUESTIONS

  • What Should I consider while placing order?

    You must provide exact requirements along with the proper size and expected delivery dates and packaging.

  • Do I have to share you existing sample for custom requirements ?

    It will be great if you share a sample of your existing product if it’s a custom requirement. Else we will get it done using the measurements you’re provided

  • How do I keep track of progress?

    Our team will send you timely updates regarding any changes required during your manufacturing. Only upon your approval, we will push those changes into production.
